Q-G ADAPTERS, ACCESSORIES
CONNECTORS & RECEPTACLES
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
Q-G ? ADAPTERS, ACCESSORIES
25

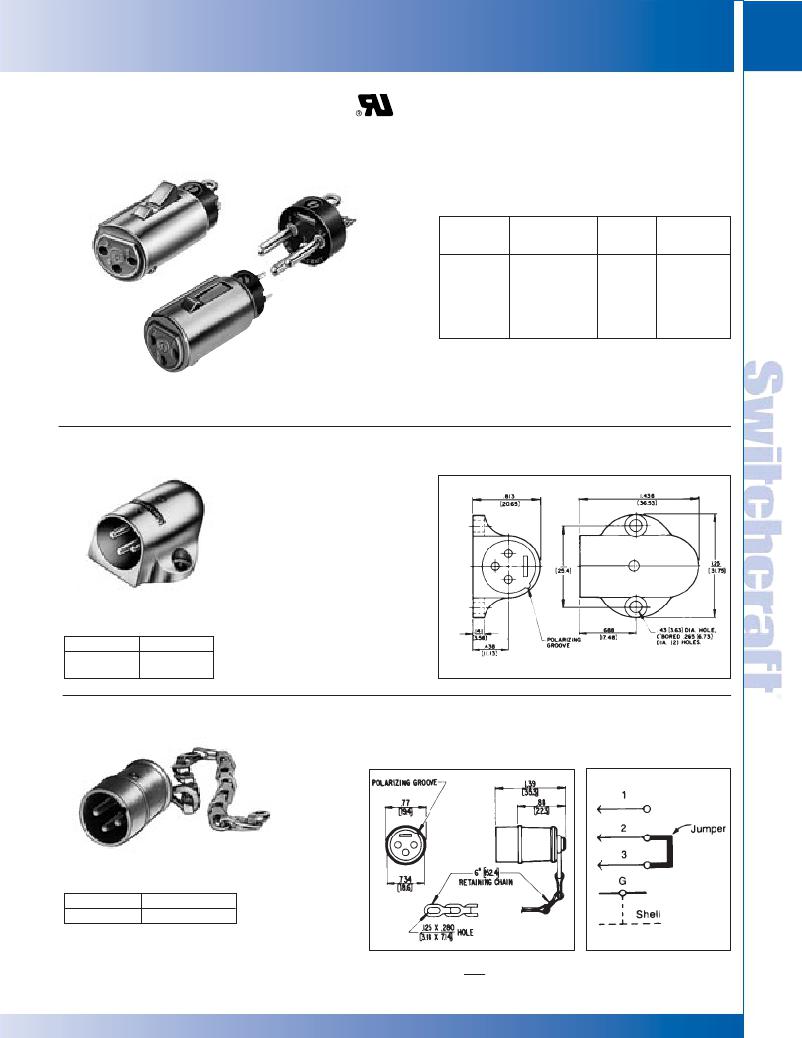

Q-G ? CONNECTOR INSERTS
Male and female Q-G ? inserts with 3-7 pins/contacts, fit
appropriate plug and receptacle housings. Female
inserts available with standard latchlock or
FAS-DISCONNECT detent mating, and with solder or
PC terminals. Intended for replacement, or building into
equipment such as microphones and transducers.
Insert
Standard
Latchlock
—
QG3F
QG4F
QG5F
QG6F
QG7F
FAS-*
DISCONNECT
? QG3FDPC
QG3FD
QG4FD
QG5FD
QG6FD
QG7FD
Male
Inserts
—
QG3M
QG4M
QG5M
QG6M
QG7M
Pins/
Contacts
3
3
4
5
6
7
*Suffix letters “PC” indicate PC terminals; all others (except “S”)
have solder lugs.
**Suffix letter “S” indicates locking PC terminal and plastic housing.
? Special order only. Contact Switchcraft.
Note: Add suffix “BAU” for black insert with gold-plated contacts.
W(*)M RECEPTACLE
Right-angle male panel receptacle.
Mounts with two, #5-40 machine screws.
Part Number
W3M
W4M
Insert Pins
3
4
SHORTING PLUG
3-pin plug shorts out unused hi-Z microphone inputs or other sensitive
circuits (shorting jumper installed between pins 2 and 3). 6" (152.4 mm)
chain fastened to end pin to prevent plug loss. Switchcraft can install
special wiring for a nominal extra charge.
Part Number
? N3MS
Insert Pins
3
? Available on special order only; contact
Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
